Scatter vs Bloom: Choosing the Right Vectorscope Display Mode

Chromascope offers multiple density rendering modes for the vectorscope display. The two most commonly used are scatter and bloom. Both plot the same color data from your image onto the same circular graph. The difference is in how they visualize pixel density -- how they handle the fact that many pixels may map to the same position on the plot.

Choosing the right mode is not about one being better than the other. Each reveals different characteristics of your color distribution. Understanding what each mode emphasizes will help you pick the right one for the task at hand. If you are new to vectorscopes in general, read How to Read a Vectorscope first.

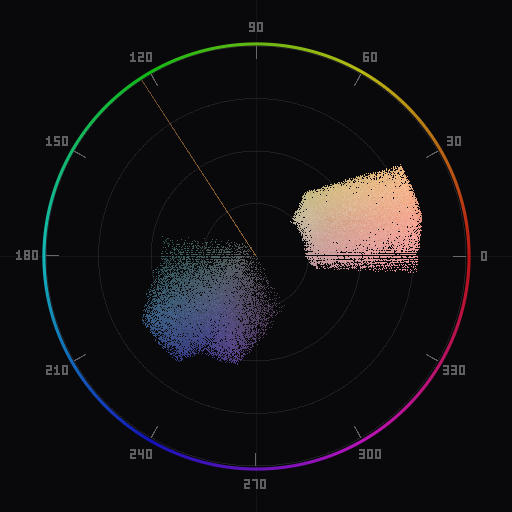

What scatter mode shows

In scatter mode, every sampled pixel is plotted as a single dot on the vectorscope. The dot is placed at the position corresponding to that pixel's hue (angle) and saturation (distance from center). When multiple pixels map to the same or nearby positions, their dots overlap. Because Chromascope uses additive blending, overlapping dots produce a brighter result.

The visual effect is a star-field-like display. Sparse color populations appear as dim, scattered points. Dense populations -- where many pixels share similar hue and saturation values -- appear as bright clusters. The brightness at any point on the scatter plot is proportional to the number of pixels that map there.

Scatter mode preserves detail at the individual pixel level. A single outlier pixel -- say, a bright red mailbox in an otherwise muted scene -- will appear as a visible dot near the edge of the scope at the red hue angle. In bloom mode, that single pixel might be invisible because its glow is too faint to register against the background.

Scatter also preserves the exact shape of color clusters. If your skin tones form a tight, elongated cluster along the I-line, scatter mode will show that precise shape. You can see whether the cluster is round (evenly distributed) or stretched (spanning a range of hues or saturations).

What bloom mode shows

In bloom mode, each sampled pixel is rendered not as a single dot but as a soft radial glow -- a small circle of light that fades from bright at the center to transparent at the edges. When many pixels map to nearby positions, their glows overlap and blend additively. The result is a smooth, organic-looking display where dense color populations appear as large, luminous clouds.

Bloom acts as a natural low-pass filter on the scatter data. It smooths out individual pixel noise and emphasizes the large-scale structure of the color distribution. The dominant color populations in your image become immediately obvious as bright, glowing masses on the scope. Secondary populations appear as dimmer clouds. Sparse outliers tend to disappear entirely.

This smoothing effect makes bloom mode faster to read at a glance. You do not need to study the plot carefully to understand the overall color balance. The shape and position of the bright clouds tell you immediately: where is the color mass, how spread out is it, and is it centered or shifted to one side?

When to use scatter

Scatter mode is the better choice when you need precision and completeness.

Skin tone analysis. When checking skin tones against the I-line, scatter mode shows you the exact cluster shape. You can see whether skin tones are tightly grouped (good) or spread across a wide hue range (potential white balance or mixed lighting issue). The shape of the cluster matters, and scatter preserves it.

Identifying outliers. If you suspect a small area of unwanted color in your image -- a color cast on a supposedly neutral surface, a stray reflection, a sensor artifact -- scatter mode will show it. The individual dot will be visible even if only a handful of pixels contribute to it.

Evaluating color separation. When you want to see whether two color populations are distinct or overlapping, scatter gives you an honest answer. Two separate clusters with a gap between them are genuinely separated. In bloom mode, the glows might overlap and make them appear connected when they are not.

Product photography. When color accuracy matters -- product shots, archival reproductions, scientific imaging -- scatter mode gives you the most truthful representation of where your colors actually are.

When to use bloom

Bloom mode is the better choice when you need speed and clarity of the overall picture.

Quick color balance assessment. Open an image and glance at the bloom plot. If the bright cloud is centered, the image is relatively neutral. If it is offset toward a particular hue, you have a color cast in that direction. This takes less than a second.

Color grading. During creative color grading, you are making broad adjustments to the overall palette. You care about the big picture: is the color mass moving in the direction you intend? Bloom shows this clearly. The smooth clouds respond visibly to slider adjustments, making it easy to see the effect of each change.

Comparing images. When evaluating a series of images for color consistency -- a wedding set, a product catalog, a portrait session -- bloom mode lets you quickly compare the overall color signature. Consistent images will have similarly shaped and positioned bloom clouds.

Working with harmony overlays. Bloom's smooth masses are easier to evaluate against harmony overlay zones than scatter's granular dots. You can see at a glance whether the bulk of your color falls within the harmony zones or outside them.

Side-by-side comparison

The following table summarizes the key differences between scatter and bloom modes.

Practical recommendation

Start with bloom. It gives you the fastest initial read on any image. When you see something that needs closer investigation -- a cluster that might be split, an unexpected hue offset, a skin tone that looks borderline -- switch to scatter for the precise view.

There is also a third mode, heatmap, which maps pixel density to a color ramp. Heatmap sits between scatter and bloom in terms of detail: it smooths less aggressively than bloom but is easier to read than raw scatter. Some photographers prefer it as a middle-ground option.

All three modes are available in both the Lightroom Classic plugin and the Photoshop panel. You can switch between them at any time without losing your place -- the same image data is simply re-rendered with the new visualization. Download Chromascope to try them side by side on your own images.
